注: 1、电感性负载: 功率因素=0.4:时间常数=7msec。
2、灯泡负载之突入电流为稳定状态电流之10倍。
3、马达负载之突入电流为稳定状态电流之6倍。

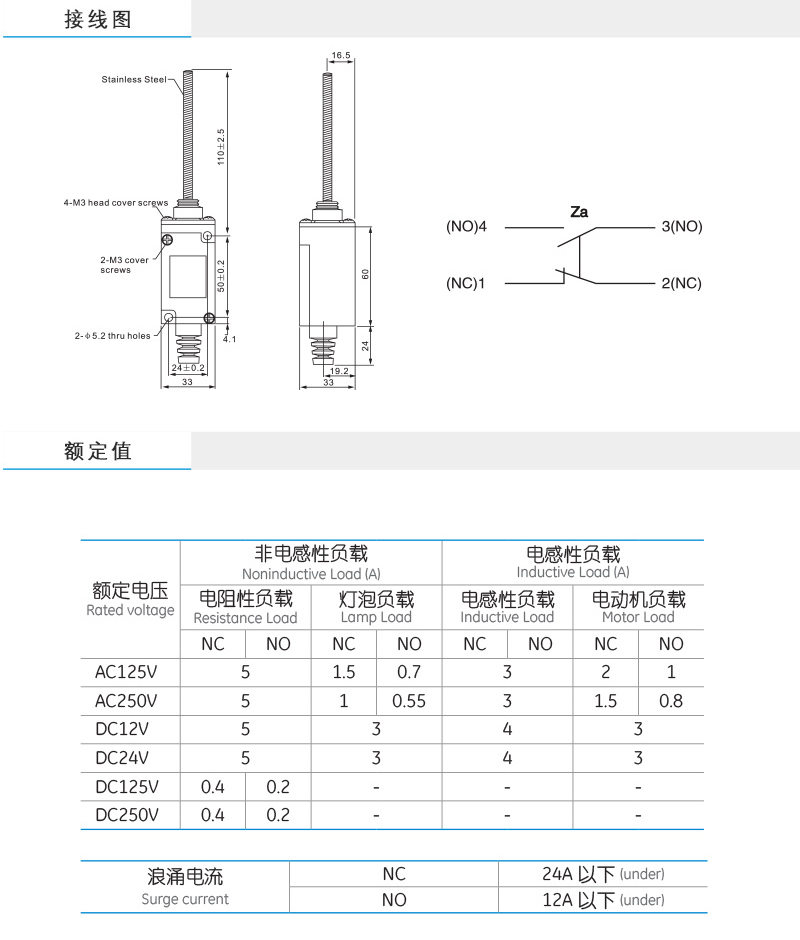

4、带弹簧系列产品,操作体的使用范围为从弹簧的前端到弹簧全长的1/3以内。 NOTE: 1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current
3. while motor load has an inrush current of 6 times the steady-state current.
4. Product with spring, its usable range of operating part is within one third of the whole
spring length from the front end of spring.
