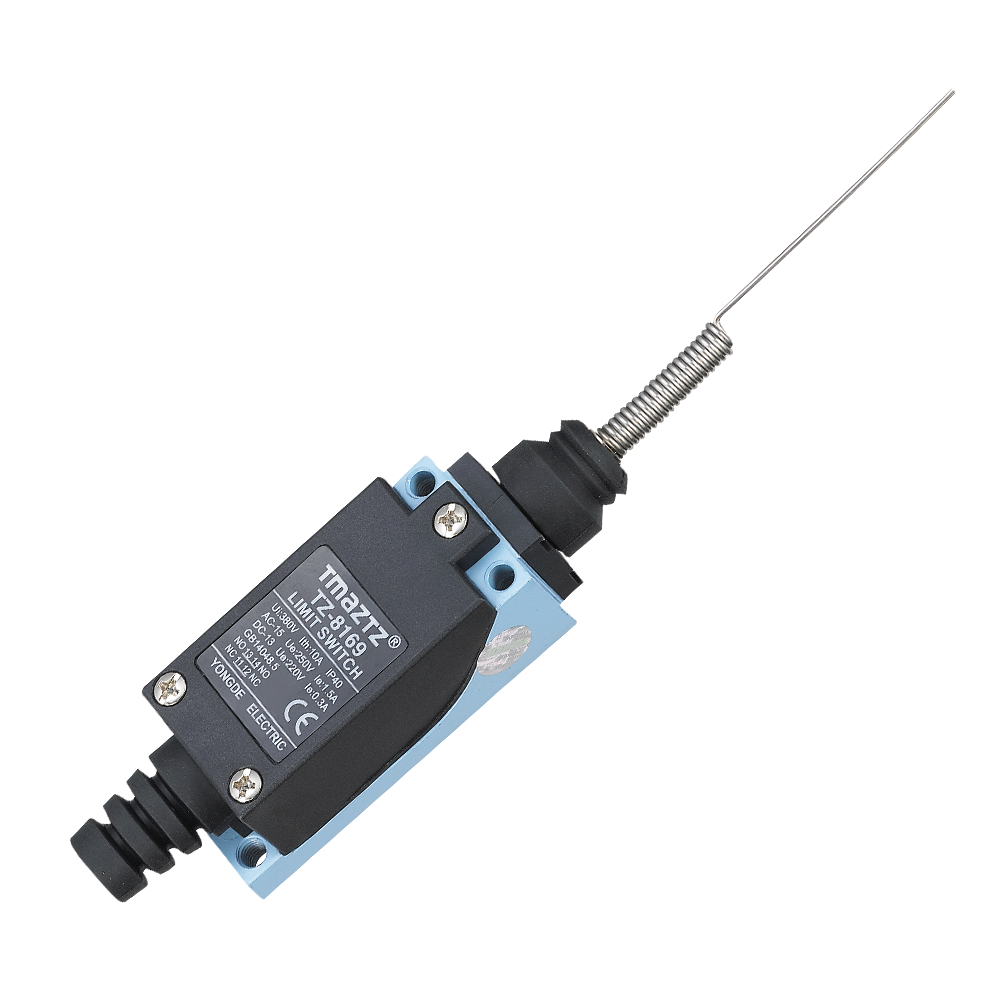

TZ-8169猫须型限位开关

TZ-8169猫须型限位开关

约本公司纵型限位开关的1/3的小型化设计

端子部全开放构造,便于布线

保护构造IP65
头部为弹簧丝型,又称为猫须型


0.00
0.00


约本公司纵型限位开关的1/3的小型化设计

端子部全开放构造,便于布线

保护构造IP65
头部为弹簧丝型,又称为猫须型

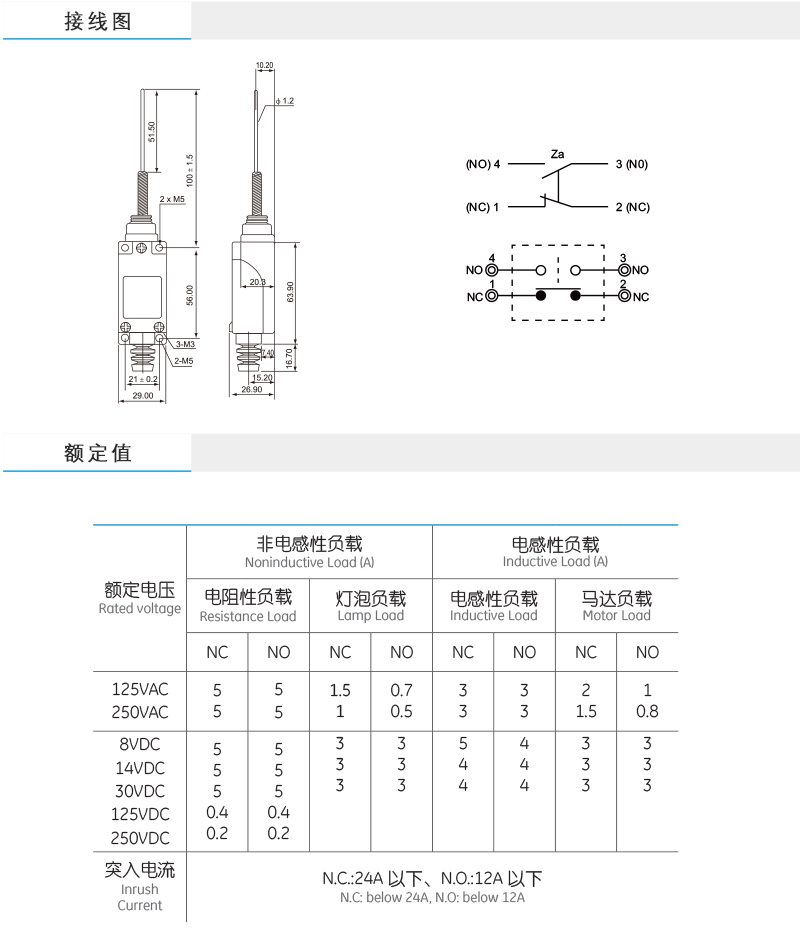

注:
1、电感性负载之功率因素在0.4以上(AC)。时间常数在7msec以下(DC)。
2、灯泡负载之突入电流为稳定状态电流之10倍。马达负载之突入电流为稳定状态电流之6倍。
3、带弹簧系列产品,操作体的使用范围为从弹簧的前端到弹簧全长的1/3以内。

NOTE: 1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load
    has an inrush current of 6 times the steady-state current.
3. Product with spring, its usable range of operating part is within one third of the whole
    spring length from the front end of spring.
